Cashew Sugar Coating Machine
Glaze, coat, candy
A sugar-coating pan that applies even sweet, honey or spiced coatings to roasted cashews for candied and snack lines.

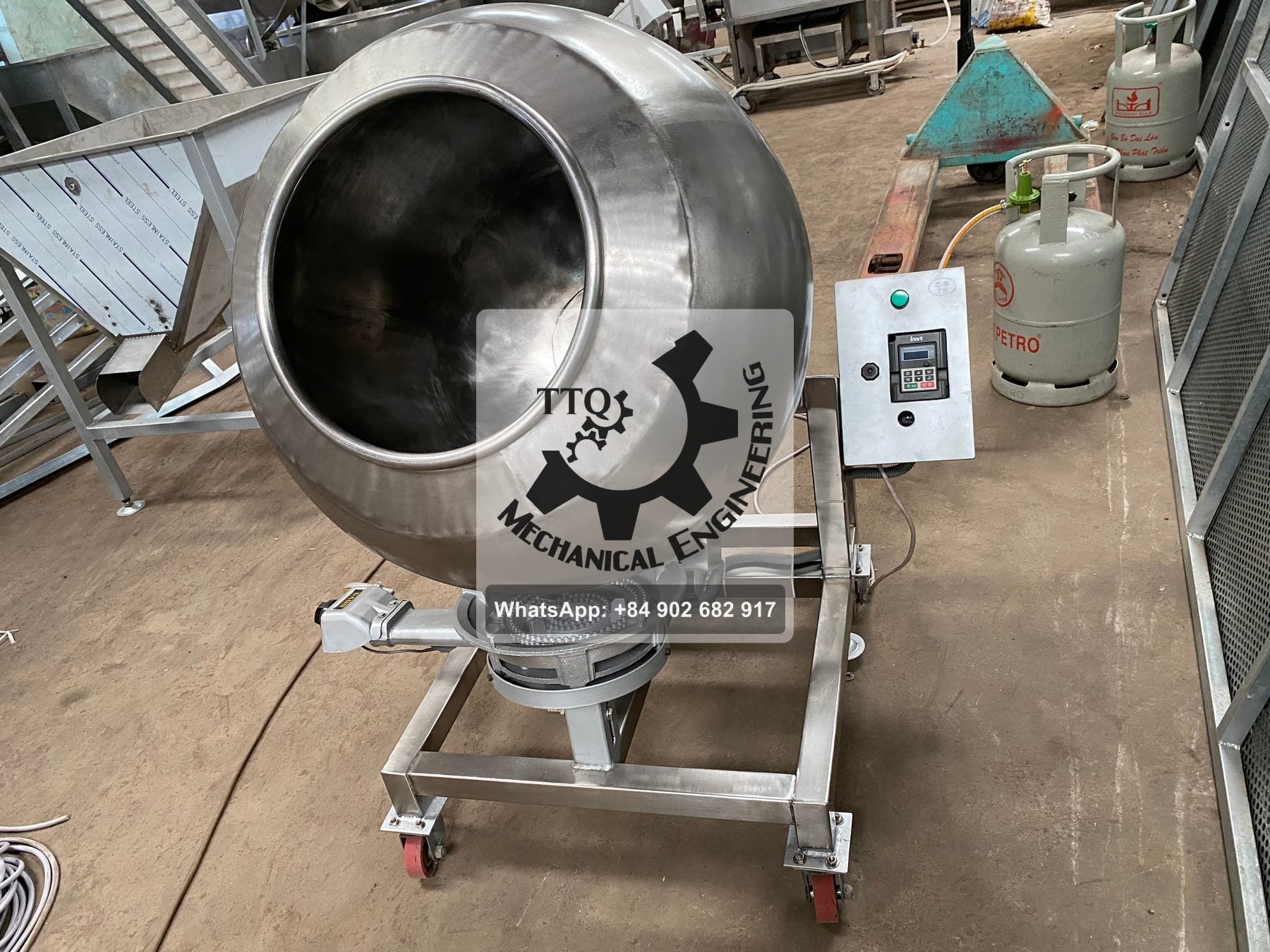

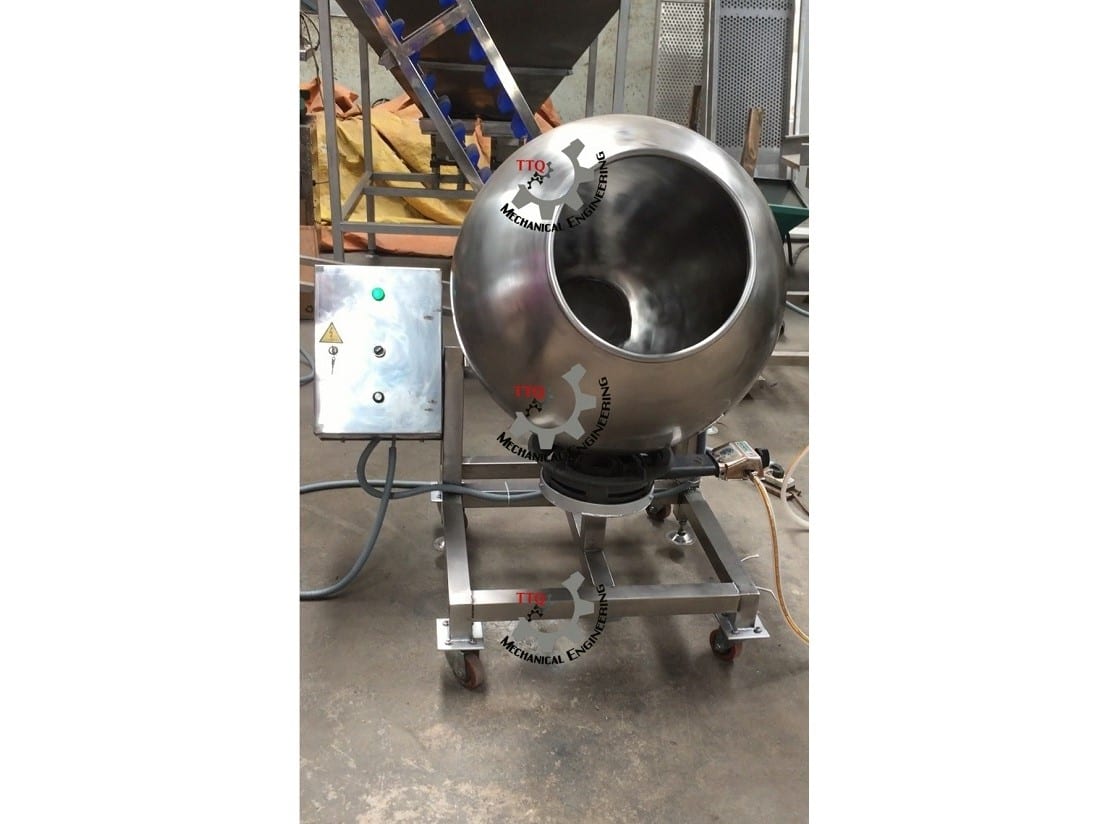

The TTQ Cashew Sugar Coating Machine applies uniform sugar, honey or spiced coatings to roasted kernels using a rotating coating pan with controlled heat and airflow. It builds an even glaze for candied cashews and coated snack products, and works in sequence with the roasting machine and packing line. Batch sizes and coating recipes are configurable.
Technical specifications
| Function | Coats kernels (sugar / honey / spice) |
|---|---|
| Type | Rotating coating pan |
| Heat | Electric / gas |
| Control | Temperature + rotation speed |
| Capacity | Batch |
| Build | Stainless pan |
Figures are typical and configurable — we confirm exact specifications against your capacity and grade targets.
Turning a commodity kernel into a branded one
Even glaze
A rotating pan builds a uniform coating over every kernel.
Controlled heat
Regulated heat and airflow set the coating without burning the sugar.
Adjustable rotation
Speed and time are tuned to the recipe and batch size.
Candied & coated snacks
Turns plain kernels into higher-value candied and seasoned products.
Sugar coating is the last value-add stage on a cashew line and the one with the widest margin. A coated, flavoured retail cashew sells at a multiple of bulk kernel, using the same nut and often the grades that would otherwise be sold cheap. The machine is a rotating coating pan — simple in principle, and entirely dependent on control of temperature, syrup and timing.
How coating works
Rotating pan
kernels tumble continuously so every surface is exposed evenly. Pan angle and speed set how the bed rolls, and that determines whether the coating is even or patchy.
Syrup application
sugar syrup is added in controlled doses rather than poured. Too much at once and kernels clump into a single mass instead of coating individually.
Drying between layers
warm air dries each layer before the next is applied. Coating is built up in passes, not in one go.
Flavour and colour
added with the syrup or dusted on between layers, depending on the product.
Polishing
a final pass without added syrup gives the finished gloss buyers expect on a retail product.
What the same machine makes
| Product | Process | Notes |
|---|---|---|
| Sugar-coated cashews | Multiple syrup layers with drying between | The classic sweet retail line |
| Honey-roasted | Honey syrup, then a light roast | Roast after coating, not before |
| Salted and spiced | Thin binder plus dry seasoning | Binder is what makes seasoning stick evenly |
| Chocolate-coated | Tempered chocolate in a cooled pan | Needs temperature control in the opposite direction |
| Polished plain kernels | Polishing pass with no coating | Improves appearance of otherwise plain retail packs |
One pan, several products. For a processor with seasonal cashew supply, the machine also handles other nuts, which keeps it earning through the off-season.
What decides the result
Kernel temperature and dryness
coat dry, cool kernels. A warm or damp kernel makes the coating stick unevenly and the finish looks it.
Syrup concentration
too thin and layers take forever to dry; too thick and it sets before it spreads.
Dose size
small, frequent additions build an even shell. One large pour produces clumps that then have to be broken apart, damaging kernels.
Pan speed
fast enough to keep the bed turning, slow enough not to throw kernels against the wall and chip them.
Drying air temperature
enough to set each layer without caramelising the sugar or roasting the kernel prematurely.
Batch consistency
coat one grade at a time. Mixed sizes coat at different rates and finish unevenly.
Cleaning and maintenance
Wash the pan between product changes
sugar residue carries flavour and colour into the next batch, which matters most when switching from spiced to sweet.
Clean syrup lines and nozzles daily
sugar syrup crystallises in nozzles and the resulting uneven spray shows up directly in the finish.
Check drive and bearings
a pan running out of true wears unevenly and changes how the bed rolls.
Inspect the pan surface
scratches and pitting hold residue and make cleandown harder to verify.
Allergen separation
if the same pan handles multiple nut types, cleaning between them is a food-safety control, not just good practice.
Coating comes after grading and usually after roasting, and before retail pouch packing. It is a value-add stage: the core economics of a plant are still set upstream at shelling and peeling. Coated product must be fully cooled before packing, or condensation forms inside the pack.
Where it fits in the process
A value-add stage after roasting — coats roasted kernels for candied and snack products before packing.
Cashew Sugar Coating Machine — FAQ
What coatings can the machine apply?
Does it need roasting first?
Is batch size adjustable?
