Cashew Nut Roasting Machine
Even roast, edge to edge
A cashew roasting machine that roasts kernels evenly with controlled temperature and time — the base stage for salted, seasoned and snack cashews.

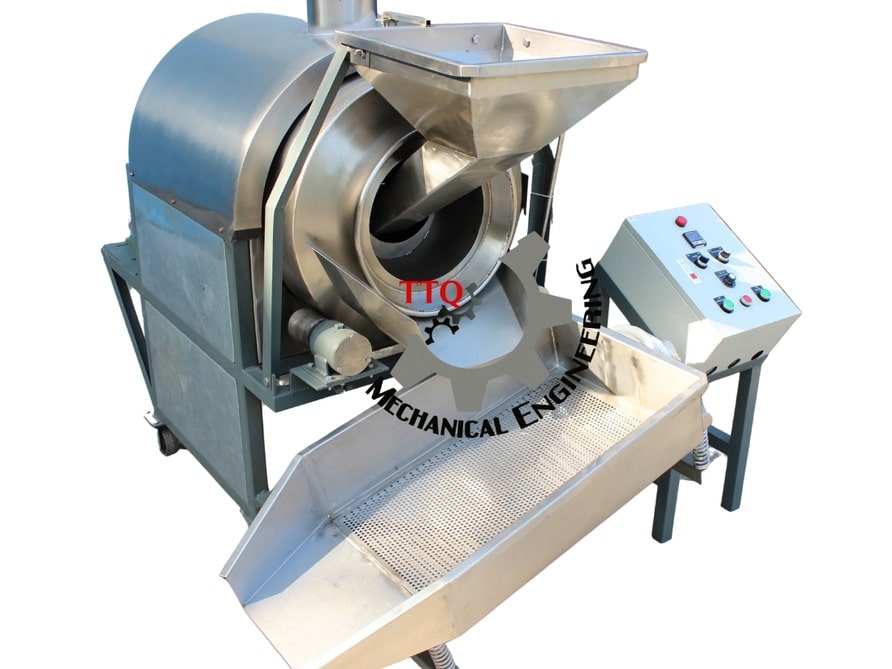

The TTQ Cashew Nut Roasting Machine roasts kernels evenly using controlled heat and continuous or batch tumbling, producing uniform colour and crunch for salted, seasoned and snack products. Temperature and time are regulated to avoid scorching, and the machine pairs with seasoning, sugar-coating and pouch-packing for value-added lines. Electric, gas and shell-fired heating options are available.
Technical specifications
| Function | Roasts kernels evenly |
|---|---|
| Type | Batch or continuous drum |
| Heat | Electric / gas / shell-fired |
| Control | Temperature + timer |
| Capacity | Model-dependent |
| Build | Stainless roasting drum |
Figures are typical and configurable — we confirm exact specifications against your capacity and grade targets.
Why salt does the work, not the heat
Even roast
Continuous tumbling roasts every kernel to uniform colour and crunch.
Controlled temperature
Regulated heat and time avoid scorching and hold a consistent roast.
Batch or continuous
Batch drums for flexibility, continuous roasters for volume.
Value-add ready
The base stage for salted, seasoned and snack cashews.

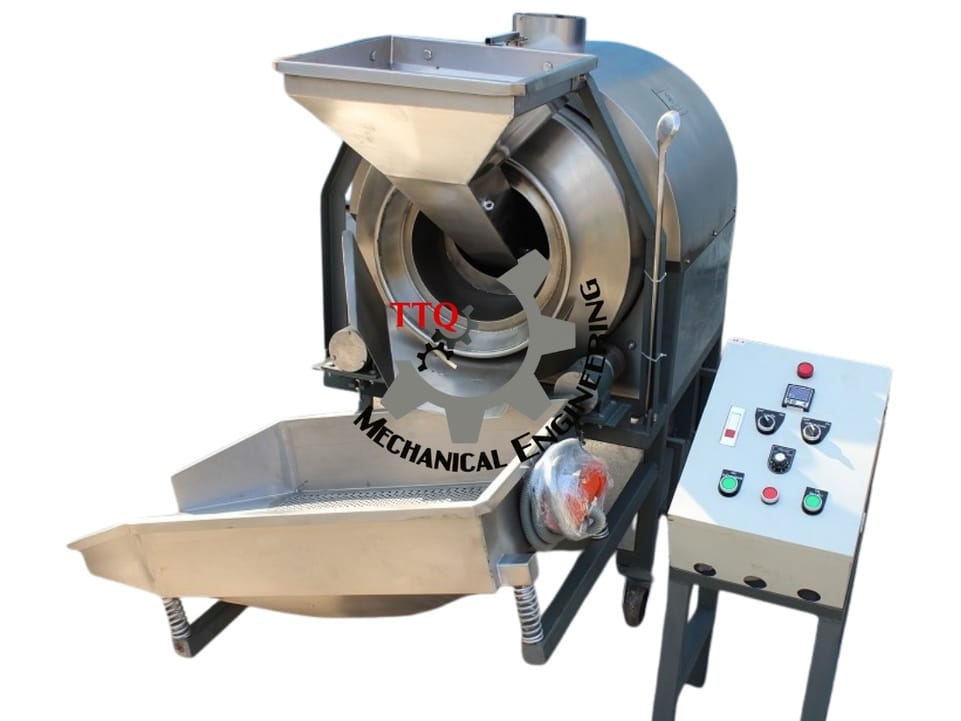

Roasting is optional on a cashew line and it is where margin gets added rather than protected. A graded white kernel is a commodity; a roasted, salted or flavoured one sells into retail at a multiple of that. The machine below is a rotary drum roaster sized for commercial batches without requiring a dedicated operator.
Specification
| Feature | Specification | What it means in practice |
|---|---|---|
| Capacity | 50 kg/batch | Commercial batch volume without industrial floor space |
| Power | 1 HP (0.75 kW), 220V single phase | Single-phase, so it installs anywhere without a three-phase supply |
| Dimensions | 1.5 × 1.0 × 1.4 m | Fits alongside an existing packing line rather than needing its own bay |
| Roasting time | 10–15 min/batch | Four to six batches an hour, so throughput scales by running longer, not bigger |
| Fuel consumption | 2–3 kg gas/hour | Low enough that fuel is not the deciding cost |
| Material | 90% stainless steel | Durable, hygienic and corrosion-resistant on every kernel-contact surface |
| Controls | Digital temperature display, auto shut-off | Repeatable results between batches and between operators |
| Workforce | 1 person | One person can load, monitor and unload |
The 50 kg batch is 15–20 kg of cashew in 30–35 kg of salt, so four to six batches an hour is 60–120 kg of nuts per hour — a value-add line rather than bulk export volume. Throughput scales by running longer, not by loading heavier.
How rotary drum roasting works
Kernels tumble inside a rotating drum over a controlled heat source. The rotation is the point: every kernel spends the same time against the hot surface, so colour develops evenly instead of scorching on one side. Salt-medium drum roasting — where kernels roast in a bed of salt rather than on bare metal — gives more even heat transfer and better flavour development than an oven, which heats the outside faster than the centre.
What roasting buys you
Margin
roasted and flavoured retail product sells well above bulk kernel prices, and the equipment cost is small against the uplift.
Product range
salted, spiced, honey-roasted and flavoured variants all start from the same machine and the same kernel.
Shelf appeal
roasting develops the colour and aroma retail buyers expect; raw kernels do not sell themselves in a packet.
Use for imperfect grades
broken and scorched grades that will never fetch whole-white prices are often better roasted and flavoured than sold as brokens.
Shelf life
roasting reduces residual moisture, though it does not replace proper vacuum or nitrogen packing.
Not only cashews
The same drum handles almond, peanut, macadamia, pistachio, walnut and sunflower seeds. For a processor with a seasonal cashew supply that matters more than it sounds — the machine earns through the off-season instead of standing idle.
Where it fits
After grading
roast a known grade, not a mixed one. Different kernel sizes take colour at different rates.
Before packing
kernels must cool fully before vacuum sealing, or condensation forms inside the pack.
Alongside the main line
roasting is a batch process on a continuous line, so it usually runs as a parallel value-add stream rather than in sequence.
Scaling
throughput scales by adding drums rather than by buying a bigger one, which keeps batch control intact.
Maintenance and safety
Weekly drum cleaning
oil and salt residue build up and affect both flavour and heat transfer.
Check the temperature probe
a drifting probe is the usual cause of batches that come out inconsistent for no obvious reason.
Test the auto shut-off
it is a safety device, and safety devices that are never tested are assumptions.
Watch gas connections
routine inspection of hoses and fittings, and adequate ventilation around the burner.
Let it cool before cleaning
obvious, and the most common cause of burns around a roaster.
This is a commercial batch roaster, not an industrial continuous roaster. Scaled-down variants exist for small-batch and speciality producers. Roasting is a value-add stage — the core economics of a cashew plant are set upstream at shelling and peeling. See sugar coating machine for the flavouring stage that usually follows it.
Where it fits in the process
A value-add stage after grading and packing — roasts kernels for salted and snack products, feeding seasoning and retail packing.
Cashew Nut Roasting Machine — FAQ
Batch or continuous roasting?
What heat sources are supported?
Can it roast for salted and seasoned cashews?
