Cashew Shell: Waste, Fuel and Feedstock
The cashew shell is not just waste — it is a fuel that powers the plant, a source of the industrial oil CNSL, and a feedstock for biomass energy and carbon credits.
The cashew shell is the hard outer casing removed during shelling. Far from useless, it is one of the most valuable by-products in cashew processing: burned in a shell burner it provides most of the heat for steaming and drying; it contains CNSL, a caustic industrial oil; and as biomass it underpins waste-to-energy and carbon-credit revenue. A modern plant treats shell as an asset, not a disposal cost.
The shell is about 70% of a raw cashew nut by weight, and for most of the industry’s history it was the part you paid to get rid of. It is now a fuel, a chemical feedstock and, in some plants, a second revenue line. Understanding what is actually in it explains both the opportunity and the handling precautions.
How the shell is built
Outer layer (epicarp)
a thin, leathery skin protecting what is underneath.
Middle layer (mesocarp)
the honeycomb structure that holds the cashew nut shell liquid. This is the layer with commercial value.
Inner layer (endocarp)
a hard shell immediately around the kernel, and the layer the cutting blade has to get through.
The testa
the thin reddish-brown skin on the kernel itself, technically not part of the shell and removed at a later, separate stage.
What it contains
The shell is rich in phenolic compounds, antioxidants and minerals, but the commercially important content is CNSL — cashew nut shell liquid — held in the honeycomb layer at roughly 20–25% of shell weight. CNSL is a mixture of alkylphenols dominated by anacardic acid, cardol and cardanol. It is also caustic: contact causes skin irritation and blistering, which is why every stage downstream of cutting needs gloves, eye protection and a cleaning routine.
What the shell is used for
Boiler fuel
over 4,000 kcal/kg, comparable to low-grade coal, burned in purpose-built shell burners to raise the steam the plant itself needs.
CNSL extraction
pressed or thermally extracted, feeding phenolic resins for automotive friction materials, electrical insulation, adhesives and marine coatings.
Cardanol derivatives
the highest-value route, into epoxy hardeners, surfactants and bio-based flame retardants.
Activated carbon
shell-derived carbon for water treatment and air purification.
Composite filler and soil amendment
shell powder in polymer composites, and carbonised shell used agriculturally.
The environmental case
Waste becomes resource
a plant that burns or presses its shell has no disposal problem and no disposal cost.
Fossil displacement
shell substituting for coal or diesel removes fossil emissions that would otherwise have been released.
Carbon neutrality
combustion releases only carbon the tree absorbed while growing.
Circularity
the fuel loop is closed within a single site, with no transport and no purchasing.
What still gets in the way
Extraction cost
CNSL recovery needs a press or thermal system, and the payback depends on volume. Below a certain scale, burning the shell is simply better economics.
Caustic handling
raw shell and CNSL both require protective equipment and proper cleaning, which is a training and discipline problem as much as an equipment one.
Market awareness
many processors still treat shell as waste, and buyers in some regions are not yet established.
Emissions
burning shell without proper combustion control produces smoke and CNSL fumes. A general-purpose biomass burner is not adequate.
Storage
shell absorbs moisture readily, losing calorific value and grade, so it needs covered ventilated storage rather than a yard heap.
For burning shell as fuel see cashew shell burner; for extracting the oil first see CNSL and cardanol production; for what shell sells for see cashew shell price. TTQ builds the equipment and does not trade shell or CNSL.
Three uses for cashew shell
Fuel
the shell burner heats steaming and drying
CNSL
extract the shell liquid for industry
Biomass & carbon credits
Using shell for heat makes steaming and drying largely fuel-free — the plant powers itself from its own by-product.
The process, drawn
Where the raw nut actually goes
One tonne of RCN leaves the plant as three streams, not one. The kernel pays the wages; the shell pays the fuel bill.
The testa is the thin brown skin taken off at peeling. CNSL comes from the SHELL, not from the testa or the husk — a distinction worth holding onto when reading supplier literature.
The shell energy loop
The cleanest economics on the site: the waste stream from stage 03 comes back as the heat for stages 02 and 04.

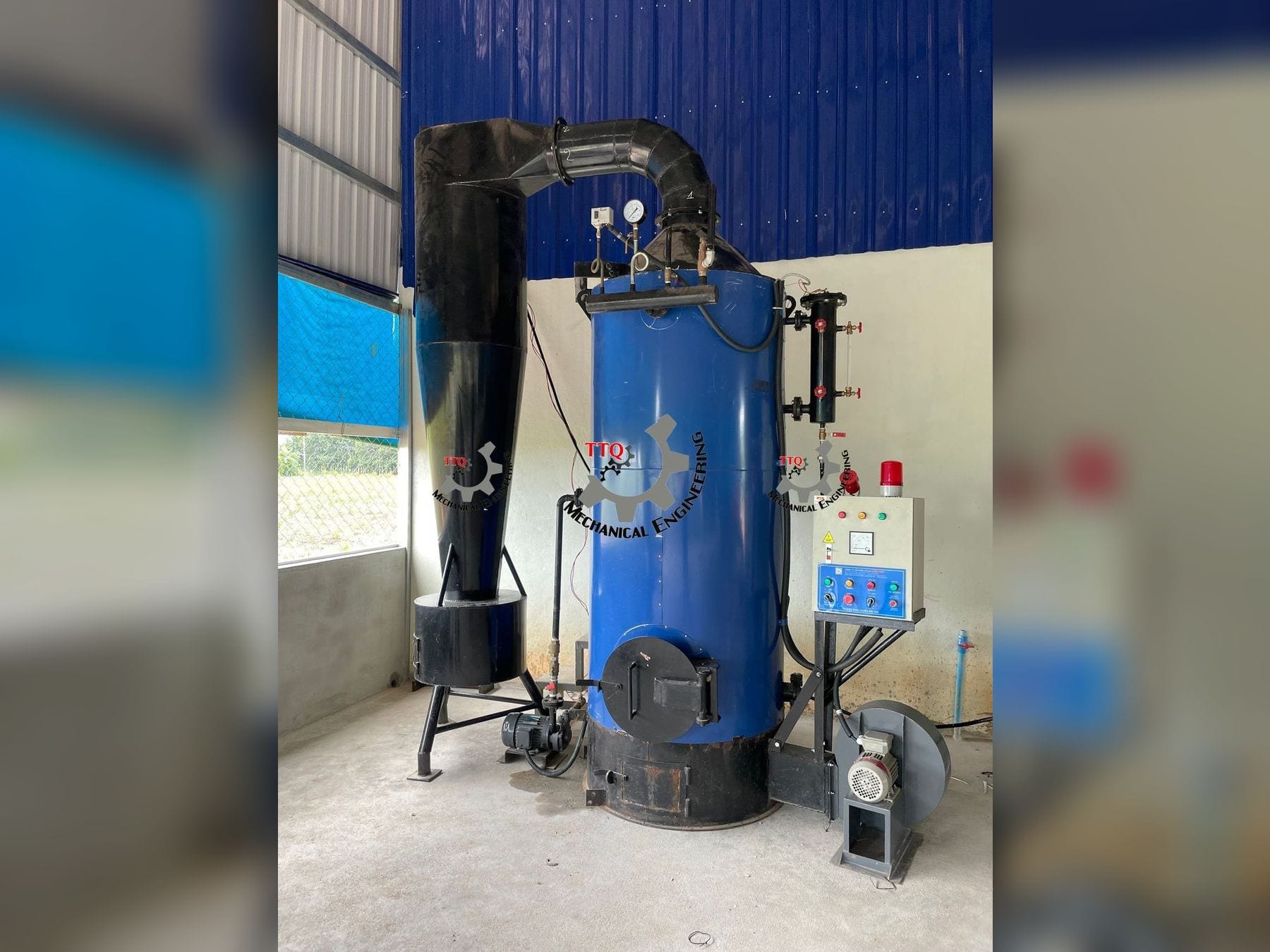

The same TTQ boiler range fires cashew shell, wood chips or pellets. Note the dryer is heated by electrical coils or by boiler steam through heat-transfer coils — the shell burner fires the boiler and the roasting machine, not the dryer directly.
The geometry behind it
Where CNSL actually sits
A cashew is not a nut with a shell around it — it is a drupe, and the layer that matters commercially is the honeycomb mesocarp between the outer and inner shell walls. That honeycomb holds the CNSL. It is separated from the kernel at shelling, which is why the testa peeled off later contains none of it.
Cross-section, schematic. The commercial consequence is the one people get wrong: “husk” is used for both the shell and the testa, and only the shell yields CNSL.
