Cashew Vacuum Packing Machine
Nitrogen-flush, export shelf life
Vacuum and nitrogen-flush packing that seals graded kernels into 10 kg export tins and retail pouches for long, export-ready shelf life.

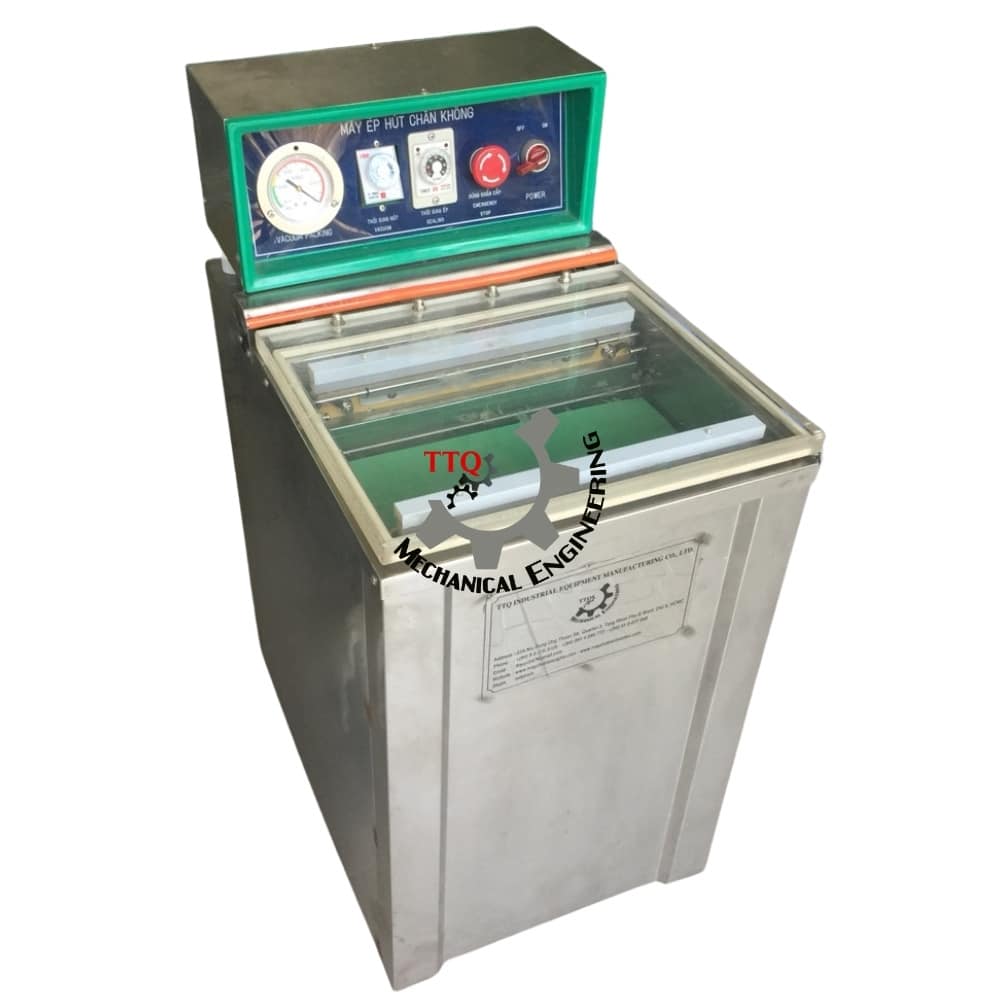

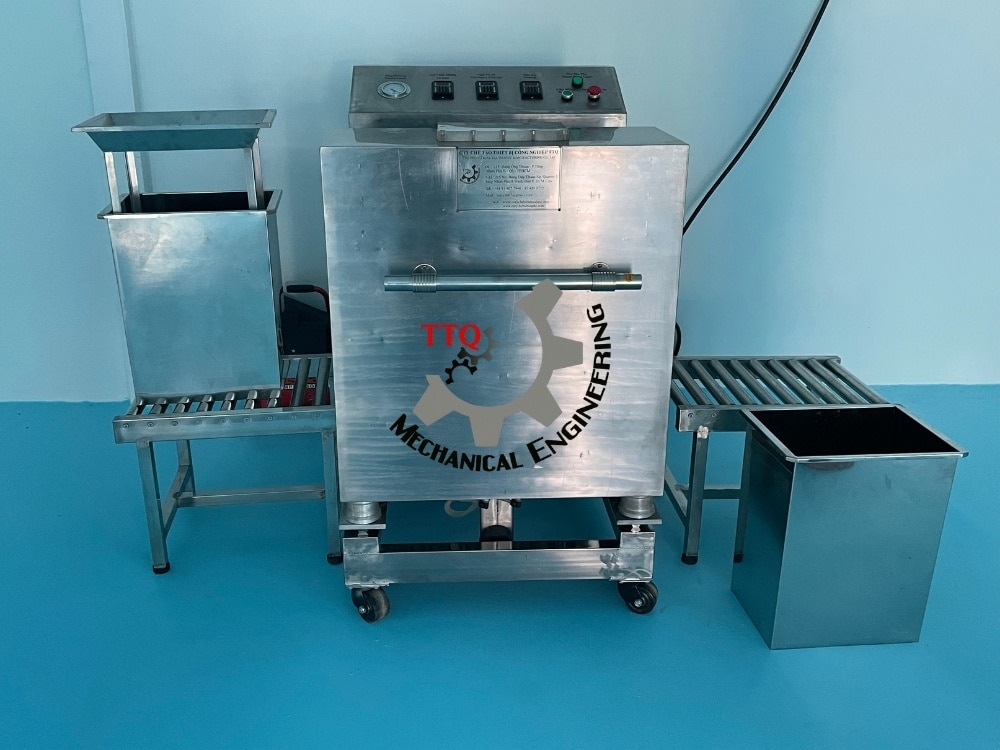

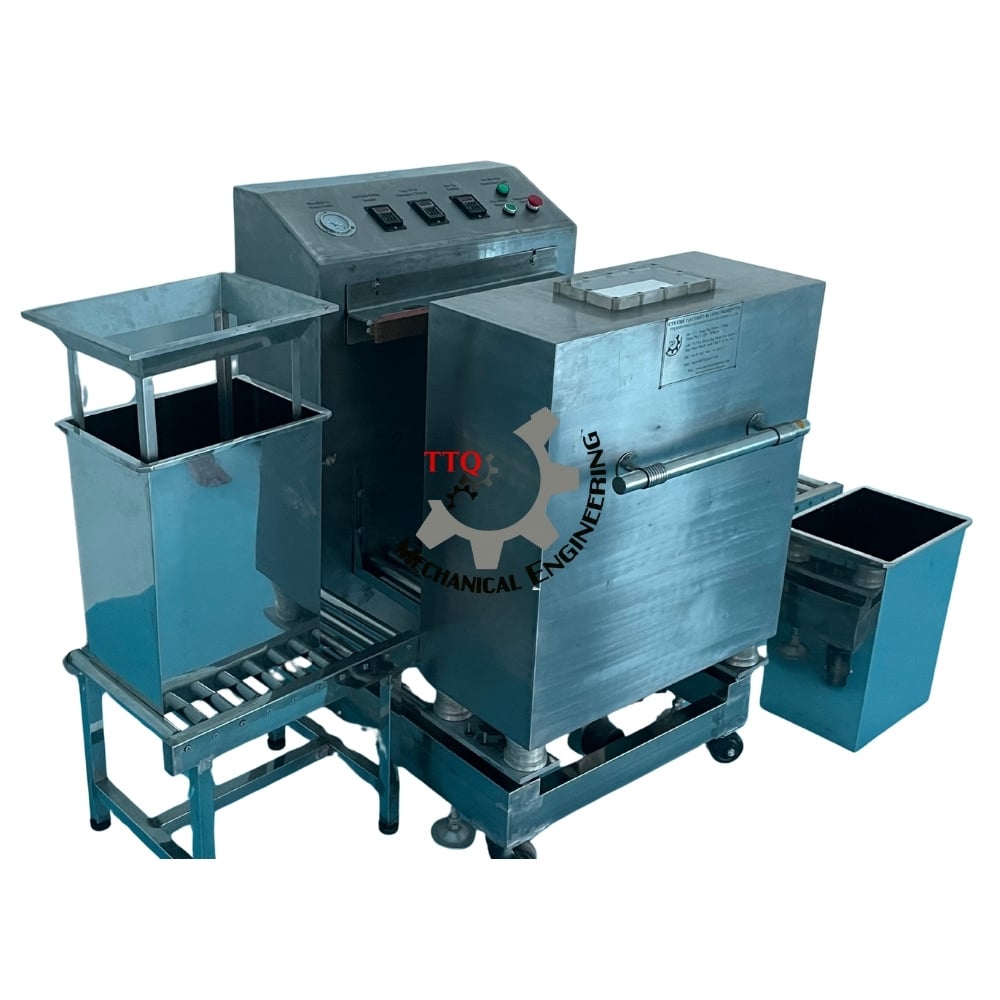

The TTQ Cashew Vacuum Packing Machine seals graded kernels under vacuum with a nitrogen flush, removing oxygen so cashews stay fresh and crisp through long export shipping — a shelf life of up to about 12 months. It packs the standard 10 kg vacuum tins and blocks plus retail pouches. For full specifications, features and the primary product page, see the cashew vacuum packing machine.
Technical specifications
| Function | Vacuum + nitrogen-flush sealing |
|---|---|
| Formats | 10 kg tins/blocks, retail pouches |
| Gas | Food-grade nitrogen flush |
| Shelf life | Up to ~12 months |
| Control | Semi / fully automatic (PLC) |
| Build | Stainless food-contact surfaces |
Figures are typical and configurable — we confirm exact specifications against your capacity and grade targets.
What a full-auto line changes at the packing end
Export-ready formats
Seals the standard 10 kg vacuum tins and blocks plus retail pouches.
Nitrogen-flush freshness
Displacing oxygen with N₂ keeps kernels crisp and prevents rancidity in transit.
Up to 12-month shelf life
Long shelf life is what makes full-container export shipping viable.
Semi or fully automatic
Scale from an operator-fed sealer to an automatic packing line.
Model & capacity comparison
Every model TTQ builds for this stage, side by side. Pick by throughput and footprint — each links straight to a quote.
Packing & metal detection — models
Kernel cleaning, weighing, vacuum/nitrogen sealing and metal detection for export-ready packs.
| Model | Capacity | Power | Footprint (L×W×H) | Cycle | Crew | Ref | Quote |
|---|---|---|---|---|---|---|---|
| Kernel sorting line | 1,000–1,500 kg/h | 0.5 HP (0.4 kW), 3-phase 380V | 1.2 × 1.2 × 1.1 m | — | 1 | TTQ-PCK-01 | Quote → |
| Auto weigh + vacuum | 50–70 packs/h | 1-phase 220V | 1.5 × 2.0 × 1.2 m | 45 s aspiration | 2 | TTQ-PCK-02 | Quote → |
| Full vacuum line | 50–70 packs/h | — | — | — | 8 | TTQ-PCK-03 | Quote → |
| Vacuum packer | — | 3 HP (2.2 kW), 3-phase 380V | 1.5 × 2.0 × 1.2 m | 45 s aspiration | 2 | TTQ-PCK-10 | Quote → |

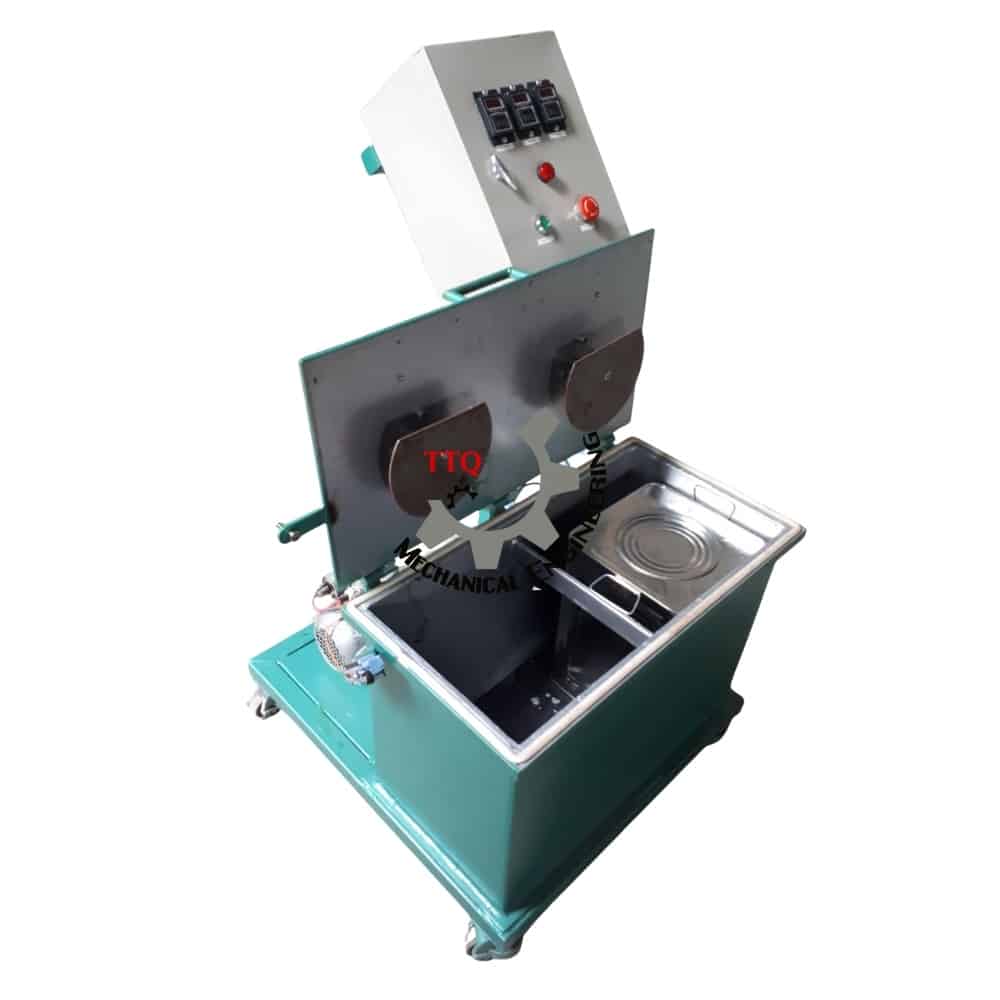

| Tin vacuum packer | — | 1 HP (0.75 kW), 3-phase 380V | 800 × 600 × 600 mm | — | 1 | TTQ-PCK-11 | Quote → |
| Metal detector | — | 2 HP (1.5 kW) | — | — | — | TTQ-PCK-12 | Quote → |
Specifications are indicative and configurable; TTQ confirms exact figures against your capacity, grade targets and factory layout. Model codes shown are TTQ quotation references.
The process, drawn
The packing end of the line
Four machines, often quoted as one. The sorting line ahead of the packer is the piece most commonly missed from a comparison.
TTQ builds vacuum equipment, not pouch machines or bags. Retail pouch formats are a separate class of machine from a different supply chain.
Where it fits in the process
The vacuum packing machine is the final stage — graded, colour-sorted kernels arrive here and leave as sealed, export-ready lots.
Cashew Vacuum Packing Machine — FAQ
Why vacuum-pack cashews with nitrogen?
What pack sizes does it handle?
Pairs well with
Cashew Vacuum Packing Machine
Nitrogen-flush, export shelf life
Open →
Cashew Pouch Packing Machine
How retail pouch packing works — and who supplies it
Open →
Cashew Grading & Sorting Machine
W180 to W450, sorted by size and colour
Open →

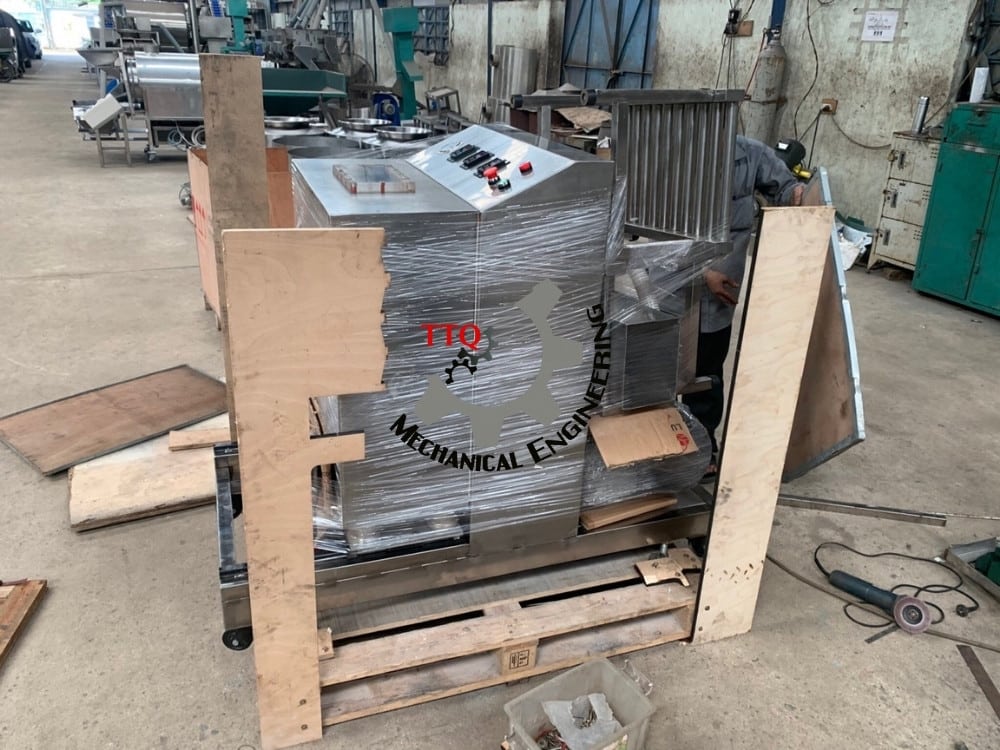

Cashew Packing Machine Price
Cashew packing machine cost is set by format, speed and automation — TTQ builds vacuum packing lines at 50–70 packs/h, plus tin packers and conveyor metal detectors. Contact us for price.
Open →Get a quote on the Cashew Vacuum Packing Machine
Tell us your target capacity and grades. We'll come back with the right configuration, a layout and a costed proposal.
